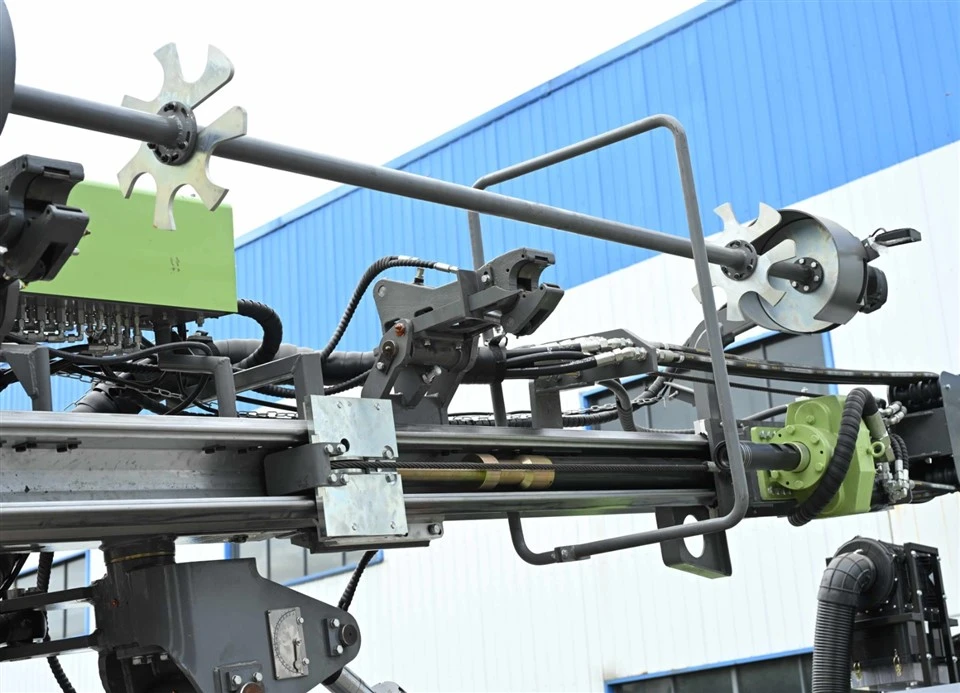

- diam ua ke hauv {1} {{4} {{} {lub qhov drilling system thiab lub hau ntsag pa taws. Nws tuaj yeem laum cov kab ntsug, inclined thiab kab rov tav qhov, thiab yog siv rau drilling blasting qhov thiab pre} splitting qhov nyob rau hauv qhib-pc mines thiab zeb engineering. Nruab nrog cov plua plav sau ua ke.

Cov txiaj ntsig ntawm me me - diamov ua ke nqes {{1} {2} {qhov tho

Txais yuchai dej -} txias supercharged cav nrog roj qis noj. Lub cav compartment txheej yog tsim nyog thiab tswj tau yooj yim.

Txais kev txais txiaj ntsig siab -}}}}}}}} {- iav hloov thiab dav.

Cov plua plav tshem tawm haib thiab pom kev, cov huab cua loj, 8 pawg ntawm lim ntsiab, ua tiav ib puag ncig kev tiv thaiv.

Cov twj txawj ntse ua twj, tiag - lub sijhawm tshuaj xyuas ntawm cov ntaub ntawv, tuaj yeem ua txhaum kev ua txhaum thiab tswb.

Tsis Siv Neeg Puv Qeem Chaw thau khoom thiab unloading system (yeem)

Me mem quav naim

Kev Qhia Tshwj Xeeb

Txhawb zog	Yuchai cav
Rated zog	110 kw
Drilling Diam	76-90m
Qhov tob ntawm Kev Lag Luam Drilling	30m
DRILLING QWS	6+1, Φ64 hli x 3000 mm / φ64 hli x 2000 mm
Nti / dth rauj	3''/4''
Ua Haujlwm Siab	1.5MPA
Kev Siv Cua Cua	12m ^ 3 / min
Teb torque (max.)	1650N.m
Kev Ceev Ceev	0 ~ 150r / min
Txoj Kev Pub	Roj Lub Tog Raj Kheej + Cov Menyuam Saw
Ncig tebchaws ceev	0 ~ 2.5km / h
Nce Peev Xwm	25 degree
Av tshem tawm	340mm
LUJ TIAV TSHUAB	6880kg
(Lxwxh) / sab nraud qhov ntev	6100 * 2300 * 2600mm
Drilling Hardness	F=6~20
Ntim ntawm Diesel Roj Tank	230L
Txoj kev ntawm cov plua plav	8 Cov Hom Qhuav
Rated sab hauv ntim	12m ^ 3 / min
Rated tso pa	15 hlis
Kev ntsuas kev siab nyuaj	Qib 1
