Dual - Hom Ntsuas Cov Ntsig Compressors yog qhov ua tau zoo thiab lub zog- siv cov khoom siv cua tshuab cua. Lawv cov ntsiab tau zoo nyob hauv lawv lub peev xwm los txawj ntse hloov ntawm ob hom kev ua haujlwm siab (xws li cov kev xav tau ntawm huab cua siab, ua tiav cov pa hluav taws xob thiab muaj peev xwm txuag hluav taws xob. Siv cov ntsia hlau siab tshaj plaws ua kom dav thiab ntse tswj lub cev, lawv tau ua kom cov haujlwm ua kom zoo dua nyob rau hauv kev ua haujlwm sib txawv, ua kom tiav cov zis ruaj khov. Cov txiaj ntsig muaj xws li: kev txuag hluav taws xob, nrog cov kev cai tswj hwm thiab dual {{5} hom hloov mus kom tsis txhob siv sijhawm tsis muaj sij hawm; Kev ntseeg siab, nrog tus qauv tsim muaj zog ua kom muaj kev ua haujlwm ntev-} tsis ua haujlwm tas mus li; Thiab muaj zog yoog tau, ua rau lawv tsim nyog rau kev siv nrog kev tsim khoom siv roj, xws li kev lag luam, thiab txo cov nqi kev lag luam.

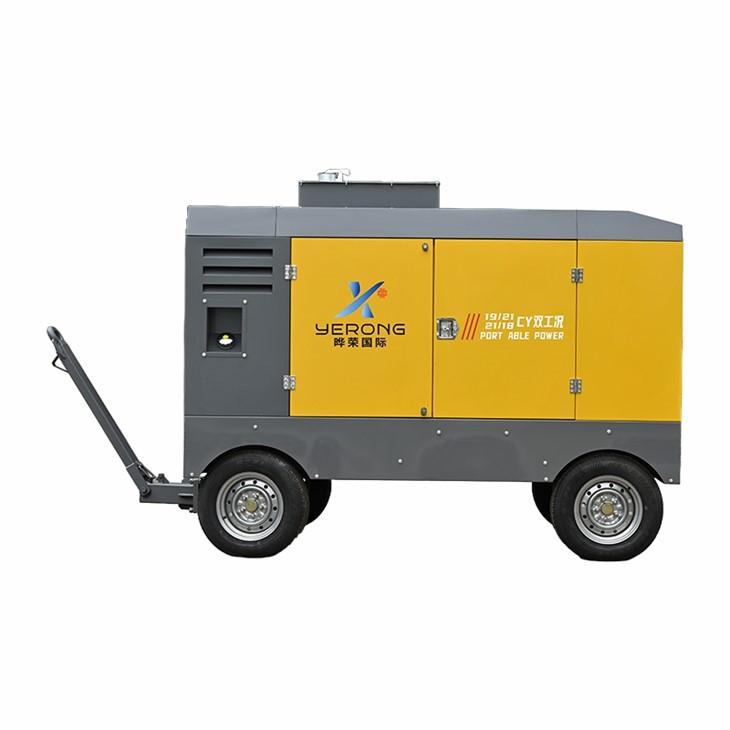

Cov Nta Ntawm Ob Chav- Tus mob Ntsia Hlau Compressor Tshuab
① nruab nrog Cummins thiab Yuchai Siab - Zoo Hom Diesel tshuab;
② Hnyav Hnyav {{0} Deartch Duty Lub taub hau tsim, kev ua tau zoo heev, thiab hloov kho lub zog txuag hluav taws xob;
③ Ua ke qhib ib txwm qhib thiab ib txwm kaw ob -}}}}}}}}}}}}}}}}}}}}}}}}}} Kev kub pib teeb meem ntawm cov pa roj;
④ Nruab nrog Fleetguard huab cua pom kev, ob chav lim lim kom pom tseeb tias cov tshuab nqus pa nqus cua tshuab nqus;
⑤ Kub kub tiv thaiv kev tsim, haum rau huab cua siab kub;
⑥ haum tswj thiab tiv thaiv kev tiv thaiv.
Me mem quav naim
Kev Qhia Tshwj Xeeb
|
Tus qauv |
YRSA-19 / 21-21 / 18cy |
YRSA-17 / 18-18 / 15cy |
YRSA-14 / 18-17 / 12CY |
|
Muaj peev xwm (m ^ 3 / min) |
19/21 |
17/18 |
14/17 |
|
Siab (mpa) |
2.1/1.8 |
1.8/1.5 |
1.8/1.2 |
|
Lub cav |
Yuchai / Cummins |
Lub sam txiv |
Yuchai |
|
Lub Hwj Chim (KW) |
191/194 |
154/157 |
140 |
|
Qauv Ua Haujlwm Pabcuam |
Dual Ua Haujlwm |
Dual Ua Haujlwm |
Dual Ua Haujlwm |
|
Ntau tshaj kev khiav haujlwm ceev (m) |
1850/1950 |
1850/1950 |
1800/2000 |
|
Nyob twj ywm (RPM) |
1450/1500 |
1450 |
1420 |
|
Roj Tank Muaj Peev Xwm (L) |
350 |
230 |
230 |
|
Kev tso pa pob valve |
G2''/G11/2'' |
G1 1/2''/G1'' |
G1 1/2''/G1'' |
|
TSHEB LOG NTAUB |
Ob -} wheeled / plaub -} wheeled |
Ob -} wheeled / plaub -} wheeled |
Ob -} wheeled / plaub -} wheeled |
|
Qhov ntev (hli) |
3200*2000*2450 |
3050*1605*2042 |
3050*1605*2042 |
|
Hnyav (kg) |
3500 |
2700 |
2400 |
|
Suab nrov |
95 |
85 |
85 |
|
Siv tau kub (degree) |
-10~50 |
-10~50 |
-10~50 |
|
Altitude (m) |
3000 |
3000 |
3000 |
